Timing Chain Cover

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Inspect oil passage (1) for driving CMP actuator and strainer (2).

Clean passage and strainer if clog or foreign matter exists.

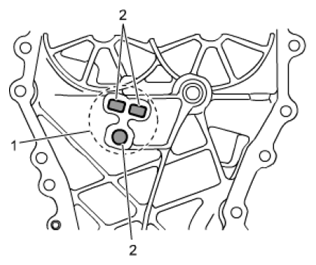

Fig 1: Identifying Oil Passage For Driving CMP Actuator And Strainer
G06527501Courtesy of SUZUKI OF AMERICA CORP.
