Throttle Body Assembly Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: THROTTLE BODY CLEANING

Clean mating surfaces and install new throttle body gasket (1) to intake manifold.

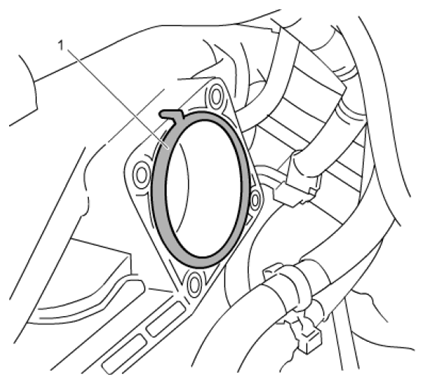

Fig 1: Identifying Throttle Body Gasket
Courtesy of SUZUKI OF AMERICA CORP.
Install throttle body assembly (1) to intake manifold, and then tighten throttle body bolt (2) to specified torque.
Tightening torque

Throttle body bolt (a): 12 N.m (1.2 kg-m, 9.0 lbf-ft)
Connect connector (4) and coolant hoses (3) to throttle body assembly (1).

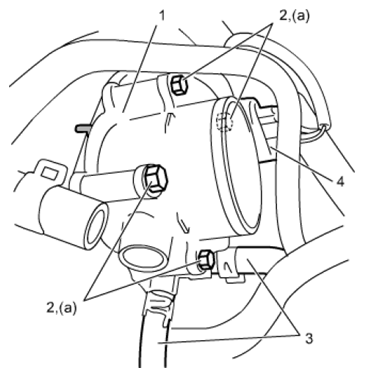

Fig 2: Identifying Coolant Hoses And Throttle Body Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Install air cleaner outlet hose, see Air Cleaner Assembly Removal and Installation .
Refill cooling system with coolant, see COOLING SYSTEM REFILLING .
Connect negative (-) cable at battery.
Check for coolant leaks, see ENGINE COOLING SYSTEM INSPECTION .
