Intake Manifold Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure for installation noting the following points:

Use New gaskets
The Intake manifold bolt No. 1 (1) is not reusable so use a new one.

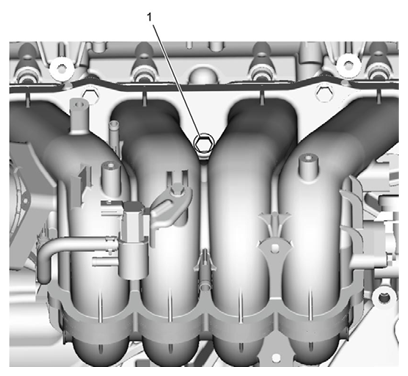

Fig 1: Identifying Intake Manifold Bolt No. 1
Courtesy of SUZUKI OF AMERICA CORP.
Refill cooling system, see COOLING SYSTEM REFILLING .
Check for coolant leaks, see ENGINE COOLING SYSTEM INSPECTION .
