Trunk Lid Request Switch Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove trunk lid trim, see TRIM REMOVAL AND INSTALLATION .
  3. Disconnect trunk lid request switch connector (1) and clip.
  4. Remove screws, and then remove trunk lid request switch (2).

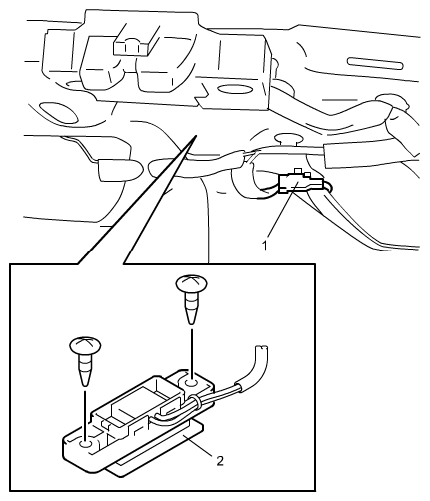

    Fig 1: Identifying Trunk Lid Request Switch With Connector And Screws
    G06527957Courtesy of SUZUKI OF AMERICA CORP.
