DTC Clearance

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Confirm that ignition mode of keyless push start system is "OFF".
  2. Connect SUZUKI scan tool to DLC (1).

    Special Tool

    1. SUZUKI scan tool (SUZUKI-SDT)

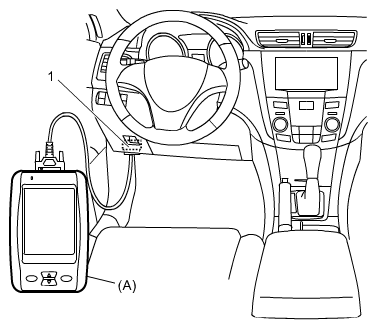

    Fig 1: Connecting Scan Tool To DLC
    G06527930Courtesy of SUZUKI OF AMERICA CORP.
  3. Push engine switch to change ignition mode to "ON".
  4. Erase DTC according to instructions displayed on scan tool. Refer to SUZUKI scan tool operator's manual for further details.
  5. After completing clearance, change ignition mode to "OFF" and disconnect SUZUKI scan tool from DLC.
