Front Wheel Bearing Check

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Confirm tightness of wheel nuts and retighten them to specified torque if necessary.
Hoist vehicle.
Check wear of wheel bearing. When measuring thrust play, apply a dial gauge to front wheel as shown in figure.
Replace front wheel hub assembly if defective.

Front wheel bearing thrust play

Limit: 0.1 mm (0.004 in.)

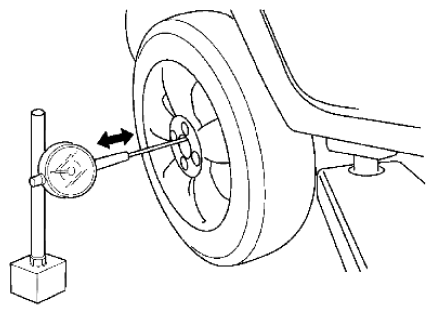

Fig 1: Checking Front Wheel Bearing Thrust Play
Courtesy of SUZUKI OF AMERICA CORP.
Check hub bearing noise and smooth wheel rotation by rotating wheel.
Replace front wheel hub assembly if defective.

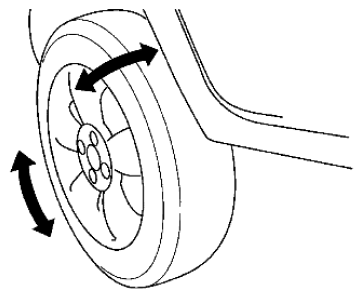

Fig 2: Checking Hub Bearing Noise
Courtesy of SUZUKI OF AMERICA CORP.
