Identification of TPMS-Equipped Vehicles
WARNING:
This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
TPMS-equipped vehicles can be identified by checking the shape of an air valve as shown below.

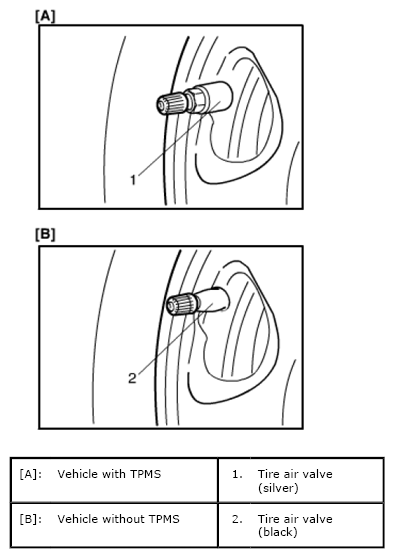

Fig 1: Identifying TPMS Equipped
Courtesy of SUZUKI OF AMERICA CORP.
