Brake Master Cylinder Assembly On-Vehicle Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check brake master cylinder and reservoir for crack, damage and brake fluid leakage. If any fault is found, replace.

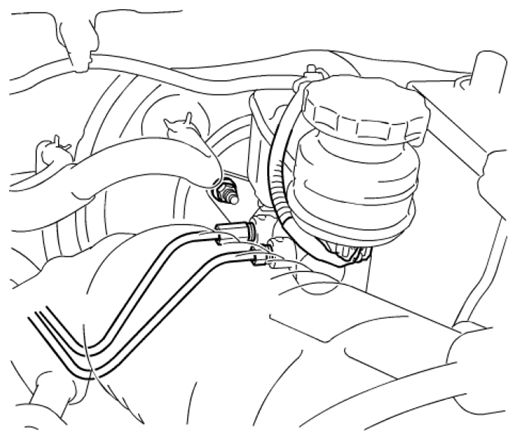

Fig 1: Identifying Brake Master Cylinder Assembly
G06528692Courtesy of SUZUKI OF AMERICA CORP.
