No-Load Inspection
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

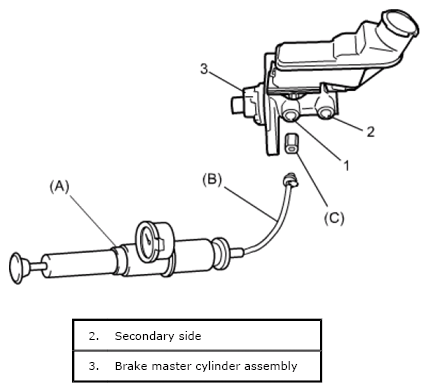

- Fit special tool to port of primary side (1) as shown below.
Special Tool
- 09918-78211
- 09952-46010
- 09952-48010
- Apply pressure to brake master cylinder assembly by special tool (A) and confirm that pressure is not established in it.
If pressure is established, it means an abnormality in brake master cylinder assembly. In such case, replace brake master cylinder assembly.
- Repeat Steps 1) and 2) for port of secondary side.
