Brake Fluid Level Switch Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check for continuity between terminals of brake fluid level switch connector (1). If faulty, replace reservoir.

Brake fluid level switch specification

MAX position (float up): No continuity

MIN position (float down): Continuity exists

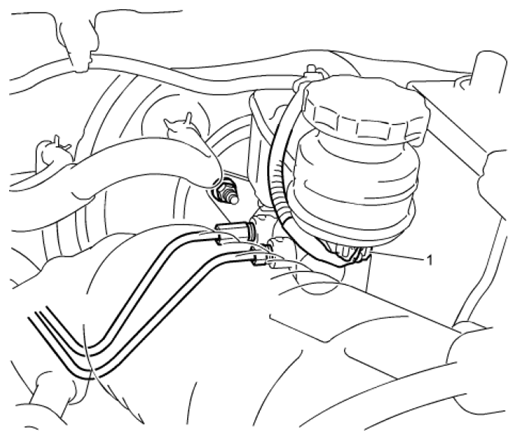

Fig 1: Identifying Brake Fluid Level Switch Connector
G06528664Courtesy of SUZUKI OF AMERICA CORP.
