Brake Booster Inspection
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
- Check brake booster for damage.
- Check brake booster for operation referring to "OPERATION CHECK " under Brake Booster Function Inspection .
- Check boot for damage and deterioration.
- Check push rod length.
If any fault is found, replace brake booster.

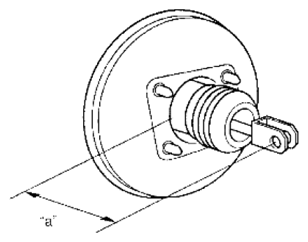

Push rod length
"a": 129 - 130 mm (5.08 - 5.12 in.)
