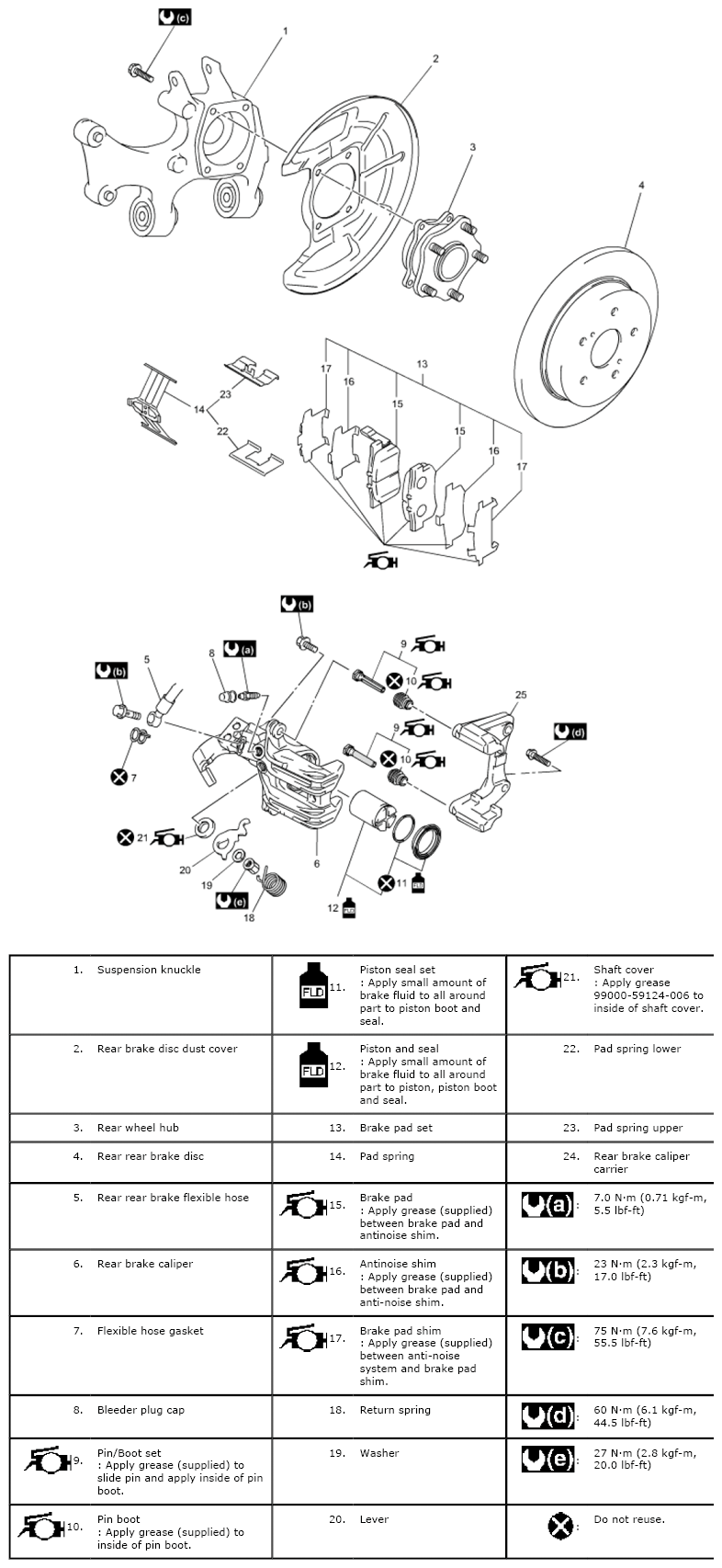

Rear Brake Components
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When disconnecting rear brake flexible hose, plug its end so that brake fluid will not flow out and contact to vehicle or floor.
- Install rear brake flexible hoses without twist.
Courtesy of SUZUKI OF AMERICA CORP.
