Front Brake Disc Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hoist vehicle and remove front wheel, see WHEEL (WITH TIRE) REMOVAL AND INSTALLATION .
  2. Remove front brake caliper and brake pads, see Front Brake Pad Removal and Installation .
  3. Remove front brake caliper carrier bolts (1) and remove front brake caliper carrier (2) from steering knuckle.

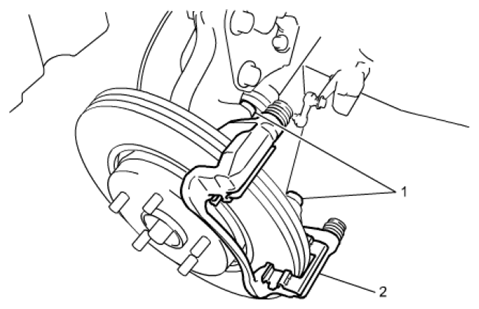

    Fig 1: Identifying Front Brake Caliper Carrier With Bolts
    G06528722Courtesy of SUZUKI OF AMERICA CORP.
  4. Push out brake disc (2) by tightening two M8 bolts (1) evenly into jack bolt holes.

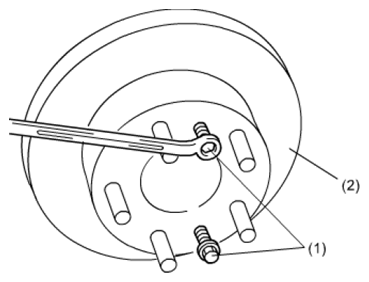

    Fig 2: Tightening M8 Bolts
    G06528723Courtesy of SUZUKI OF AMERICA CORP.
