Slide Pin

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check that slide pins (1) move smoothly in lateral direction before installing front brake caliper to front brake caliper carrier (3). Replace slide pin (1) and pin boot (2) if defective.

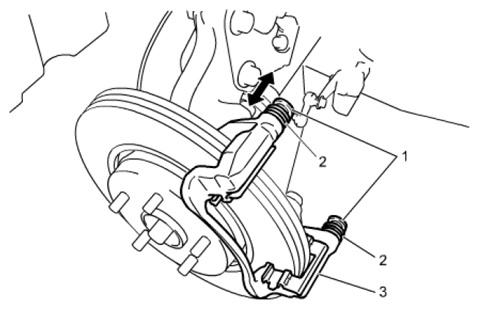

Fig 1: Checking Slide Pins
G06528746Courtesy of SUZUKI OF AMERICA CORP.
