Slide pin

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Check the following points before installing slide pin to front brake caliper carrier.
1. Check slide pins for rust, corrosion and other damage and replace them if defective.
2. Apply grease to inner side of new pin boots (1).

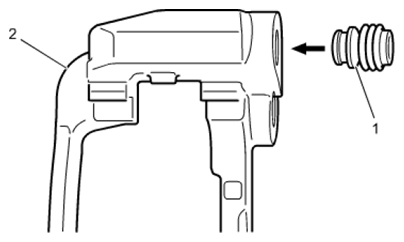

3. Install pin boots (1) to front brake caliper carrier (2) as shown.
  NOTE: Use rubber grease of which viscosity varies very little even at -40°C (-40°F).

  Fig 1: Installing Pin Boots To Front Brake Caliper Carrier
  Courtesy of SUZUKI OF AMERICA CORP.
4. Apply grease to slide pins (1).
  NOTE: Use rubber grease of which viscosity varies very little even at -40°C (-40°F).

  Fig 2: Applying Grease To Slide Pins
  Courtesy of SUZUKI OF AMERICA CORP.

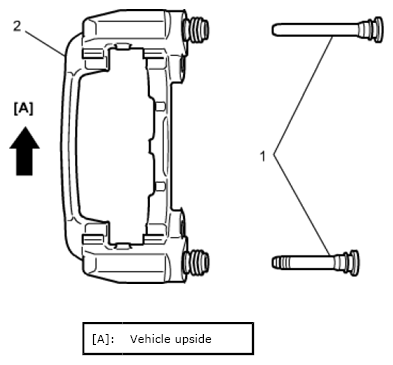

Install slide pins (1) to front brake caliper carrier (2) as shown.

Fig 3: Identifying Slide Pins To Front Brake Caliper Carrier
Courtesy of SUZUKI OF AMERICA CORP.
