Slide pin

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Remove slide pins (2) and pin boots (3) from front brake caliper carrier (1).

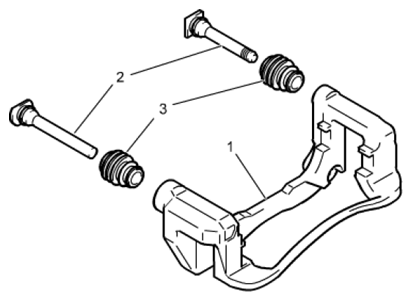

Fig 1: Identifying Front Brake Caliper Carrier And Pin Boots
G06528737Courtesy of SUZUKI OF AMERICA CORP.
