Water Pump Removal and Installation: Installation
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
Reference: WATER PUMP INSPECTION
Reverse removal procedure noting the following points:
- Use new gasket and O-ring.
- Tighten water pump bolts to specified torque.
Tightening torque

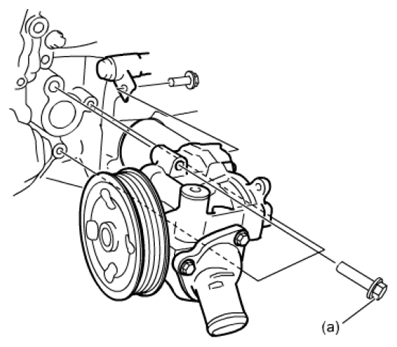

Water pump bolt (a): 25 N.m (2.5 kg-m, 18.5 lbf-ft)
- Refill cooling system.
- Check for check cooling system for leakage.
