Radiator Cooling Fan Disassembly and Reassembly: Reassembly
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
Reverse disassembly procedure noting the following points:

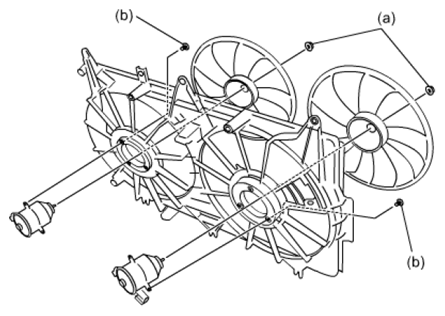

- Tighten fan nuts and radiator cooling fan motor bolts to specified torque.
Tightening torque
Fan nut (a): 6.0 N.m (0.61 kg-m, 4.5 lbf-ft)
Radiator cooling fan motor bolt (b): 3.0 N.m (0.31 kg-m, 2.5 lbf-ft)
