Radiator Cooling Fan Disassembly and Reassembly: Disassembly

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fan (1) from cooling fan motor (2).
  2. Remove fan motor (2) from cooling fan shroud (3).

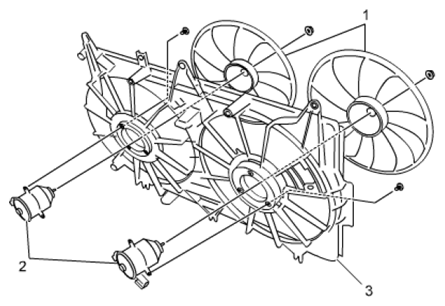

    Fig 1: Disassembling View Of Radiator Cooling Fan
    G06528241Courtesy of SUZUKI OF AMERICA CORP.
