When Using Frame Contact Hoist

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

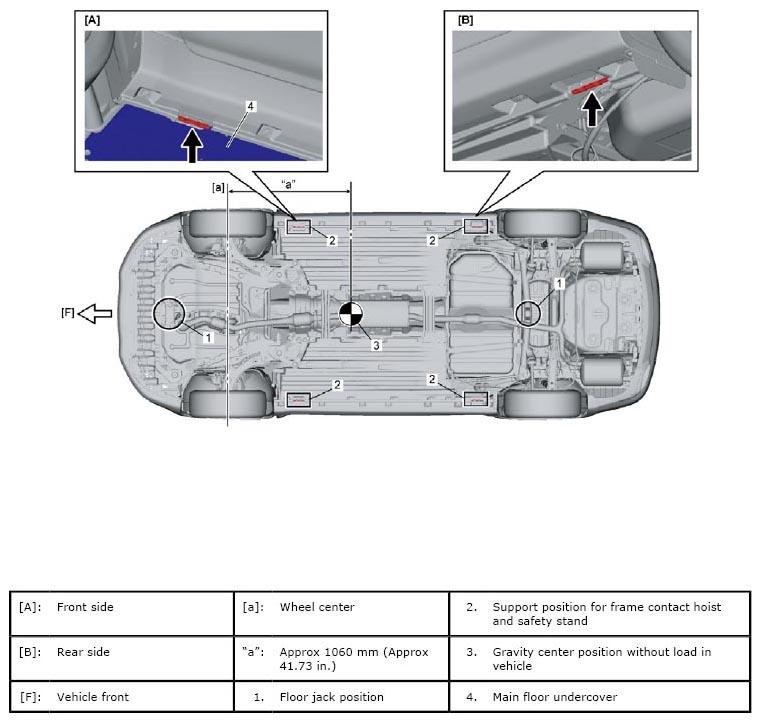

Fig 1: Identifying Vehicle Lifting Points

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: When necessary work involves removal and installation of main floor undercover (4) carefully select position of hoist arm pad before hoisting the vehicle. Otherwise, the pad may interfere with main floor undercover, to disabling removal or installation of main floor undercover.
