Warning, Caution and Information Labels Location

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

The figure shows main labels among others that are attached to vehicle components.

When servicing and handling components, refer to WARNING/CAUTION instructions printed on labels.

If any WARNING/CAUTION label is found stained or damaged, clean or replace it if necessary.

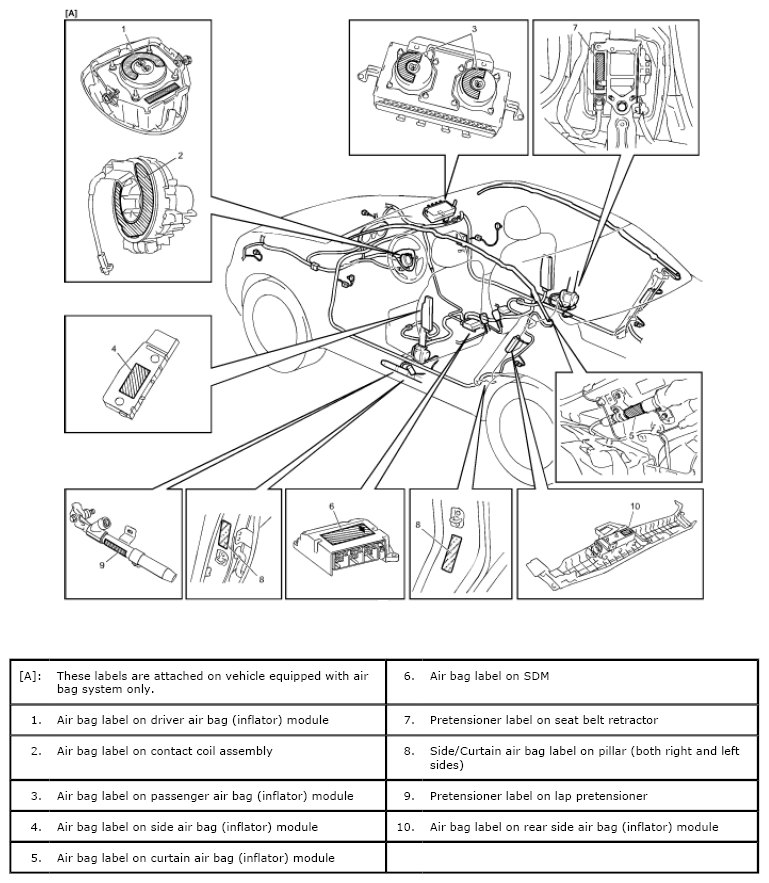

Fig 1: Identifying Air Bag Label Component Location (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Air Bag Label Component Location (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
