SDM Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: SDM REMOVAL AND INSTALLATION

CAUTION:

Do not connect a tester whatever type it may be.

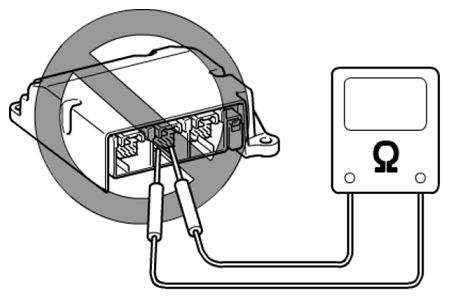

Fig 1: Caution For Do Not Connect Tester
Never repair or disassemble SDM.
Be careful when handling a SDM so as not to cause vibration or impact including dropping. If SDM has been dropped, replace it even if there is no defect in appearance. Replace with new one in case of defect such as deformation and cracks.

If any faulty condition is found in the following checks, replace them with new one.

Air bag is deployed.
Check SDM for dents, cracks or deformation.
Check SDM connector for damage, cracks or lock mechanism.
Check SDM terminal for bend, corrosion or rust.
DTC B1013, B1021, B1024, B1025, B1026, B1028, B1029, B1220 or B1221 is stored in SDM.
