Passenger Air Bag (Inflator) Module Inspection
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
Reference: PASSENGER AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION
WARNING:

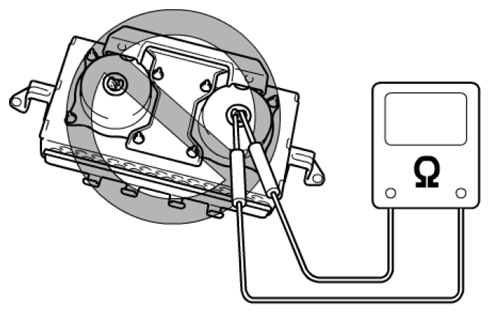

- Never measure resistance of air bag (inflator) module. Current of tester can deploy air bag.
- Never repair or disassemble air bag (inflator) module.
Check air bag (inflator) module and if any of the following condition is found, replace air bag (inflator) module with new one.
- Air bag being deployed.
- Air bag (inflator) module being deformed or damaged.
- Connector being damaged.
- Bend or deformity of air bag (inflator) module bracket.
