Front Side Impact Sensor Removal and Installation: Installation
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
Reference: FRONT SIDE IMPACT SENSOR INSPECTION
- Check that none of the following faulty conditions exists.
- Bend, deformation or rust on front door panel.
- Foreign material on sensor.

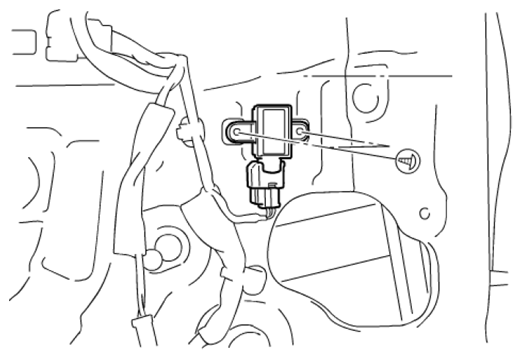

- Install front side impact sensor securely.
- Tighten front side impact sensor screws.
- Connect front side impact sensor connector securely.
- Install front door trim.
- Enable air bag system.
