Front Side Air Bag (Inflator) Module Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reverse removal procedure, noting the following points.

Lock connector for air bag (inflator) module securely.
Tighten front side air bag (inflator) module mounting nuts (1) to specified torque.
Tightening torque

Front side air bag (inflator) module mounting nut (a): 23 N.m (2.3 kg-m, 17.0 lbf-ft)

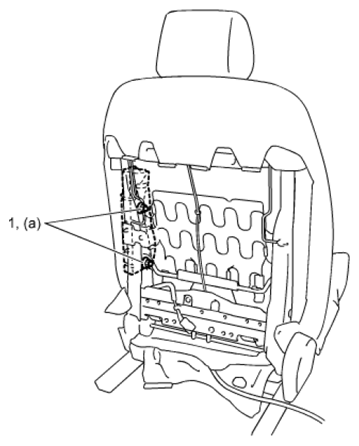

Fig 1: Identifying Front Side Air Bag (Inflator) Module Mounting Nuts
Enable air bag system.
