Forward-Impact Sensor Removal and Installation: Removal
WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
- Disable air bag system.
- Remove front bumper.

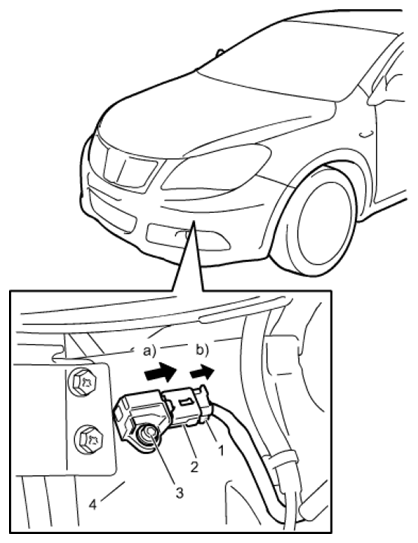

- Disconnect forward-impact sensor connector (2) as show in figure.
- Release lock (1).
- Disconnect connector with lock released.
- Remove mounting bolt (3) and remove forward-impact sensor from right apron side member outer panel (4).
