Driver Air Bag (Inflator) Module Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: DRIVER AIR BAG (INFLATOR) MODULE INSPECTION

Reverse removal procedure, noting the following points.

Lock connector for air bag (inflator) module securely.
Do not pinch or protrude harness.

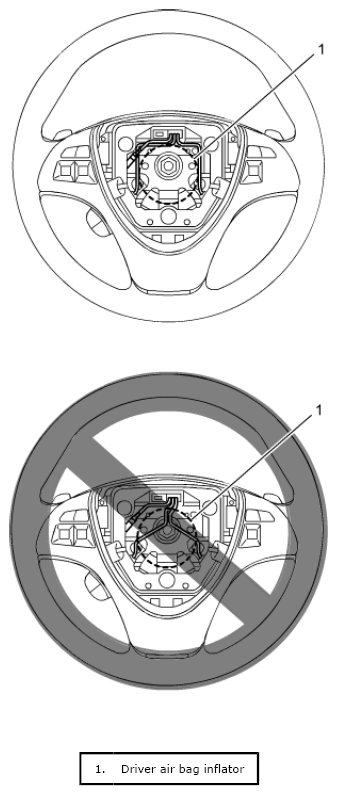

Fig 1: Identifying Driver Air Bag Inflator
Tighten driver air bag (inflator) module mounting bolts to specified torque.
Tightening torque

Driver air bag (inflator) module mounting bolt (a): 9 N.m (0.9 kg-m, 6.5 lbf-ft)

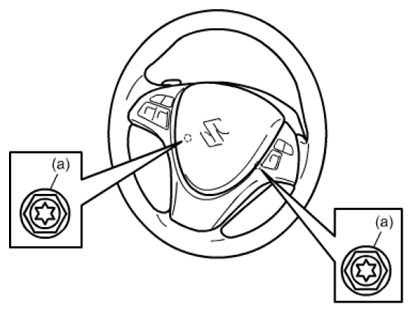

Fig 2: Identifying Driver Air Bag (Inflator) Module Mounting Bolts
Enable air bag system.
