Curtain Air Bag (Inflator) Module Inspection

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: CURTAIN AIR BAG (INFLATOR) MODULE REMOVAL AND INSTALLATION

WARNING:

Never measure resistance of air bag (inflator) module. Current of tester can deploy air bag.

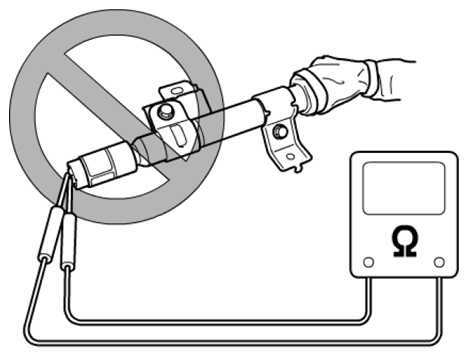

Fig 1: Precaution For Measuring Resistance Of Air Bag (Inflator) Module
Never repair or disassemble air bag (inflator) module.

CAUTION: Be careful when handling an air bag (inflator) module so as not to cause vibration or impact including dropping. If air bag (inflator) module has been dropped, replace it even if there is no defect in appearance. Replace it with new one in case of defect such as deformation and cracks.

Check air bag (inflator) module and if any of the following condition is found, replace air bag (inflator) module with new one.

Air bag being deployed.
Air bag (inflator) module is damaged or a strong impact was applied to it.
Connector being damaged.
Bend or deformity of air bag (inflator) module bracket.
