DTC Check

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Confirm that ignition mode of keyless push start system is "OFF".
  2. Connect SUZUKI scan tool to DLC (1) located on underside of instrument panel at driver's seat side.

    Special Tool

    1. SUZUKI scan tool (SUZUKI-SDT)

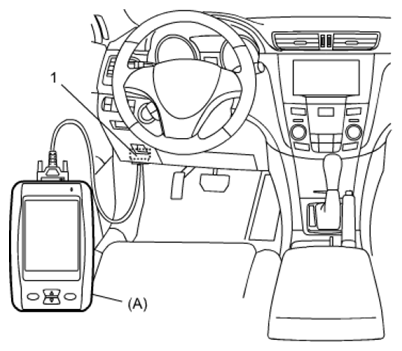

    Fig 1: Connecting SUZUKI Scan Tool To DLC
    G06526806
  3. Push engine switch to change ignition mode to "ON". Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down. Refer to SUZUKI scan tool operators manual further details.
  4. Push engine switch to change ignition mode to "OFF", and disconnect SUZUKI scan tool from DLC.
