CPP Switch (for Cruise Control) Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Confirm that ignition mode of keyless push start system is "OFF".
Remove instrument panel undercover (1).
Disconnect connector from CPP switch (for cruise control) (2).
Remove CPP switch (for cruise control) from pedal bracket.

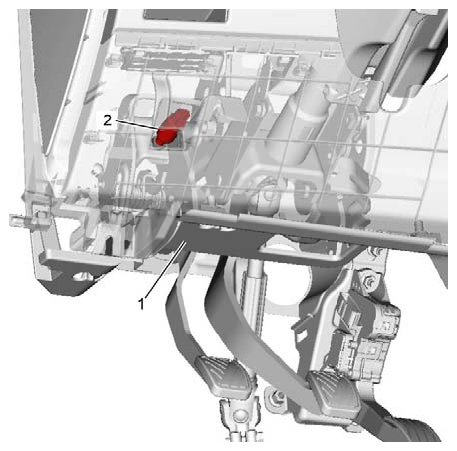

Fig 1: Identifying Instrument Panel Undercover And CPP Switch (For Cruise Control)
Courtesy of SUZUKI OF AMERICA CORP.
