CPP Switch (for Cruise Control) Removal and Installation: Installation

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: CPP SWITCH (FOR CRUISE CONTROL) INSPECTION

Install CPP switch (for cruise control) (1) to pedal bracket.
With clutch pedal (4) released, adjust switch position so that clearance between end (3) of thread and clutch pedal bracket is within specification.
Clearance between end of thread and clutch pedal bracket

"a": 1.6 - 2.0 mm (0.063 - 0.079 in.)
Tighten lock nut (2) to specified torque.
Tightening torque

CPP switch lock nut (a): 7.5 N.m (0.8 kg-m, 5.5 lbf-ft)

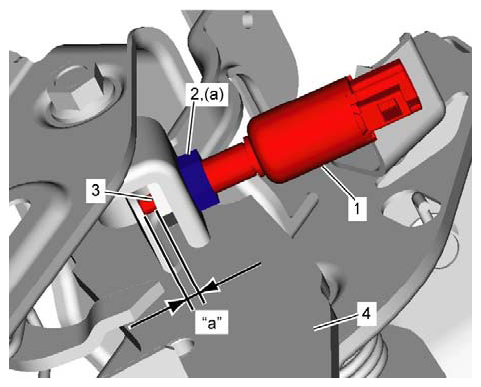

Fig 1: Identifying Clearance Between End Of Thread And Clutch Pedal Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Connect connector to CPP switch (for cruise control) securely.
Install instrument panel undercover.
