XM Antenna Inspection (If Equipped)

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Reference: XM ANTENNA REMOVAL AND INSTALLATION (IF EQUIPPED)

Check continuity referring to figure. If check result is not as specified, replace XM antenna.

Fig 1: XM Antenna Continuity Chart
G06530321Courtesy of SUZUKI OF AMERICA CORP.

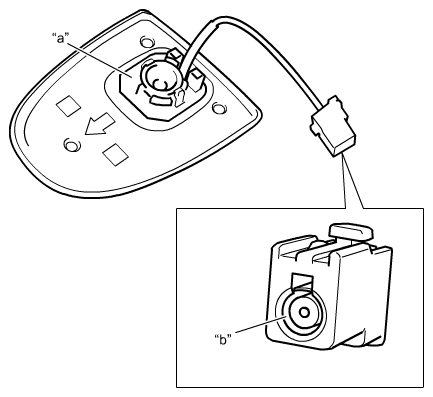

Fig 2: Identifying XM Antenna Connector Terminals
G06530322Courtesy of SUZUKI OF AMERICA CORP.
