Sub Woofer Removal and Installation (If Equipped): Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.

Open trunk lid.
Disconnect sub woofer connector (1).

Fig 1: Identifying Sub Woofer Connector
Courtesy of SUZUKI OF AMERICA CORP.
Remove partition trim, see TRIM REMOVAL AND INSTALLATION .
Remove 4 bolts (1).
Remove sub woofer (2) from partition panel (3).

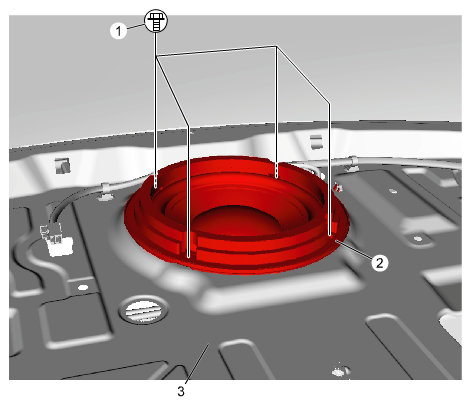

Fig 2: Identifying Sub Woofer, Partition Panel And Bolts
Courtesy of SUZUKI OF AMERICA CORP.
