Center Speaker Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument panel center speaker cover, see INSTRUMENT PANEL DISASSEMBLY AND REASSEMBLY .
  2. Remove 2 screws and remove center speaker (1).
  3. Disconnect speaker connector (2).

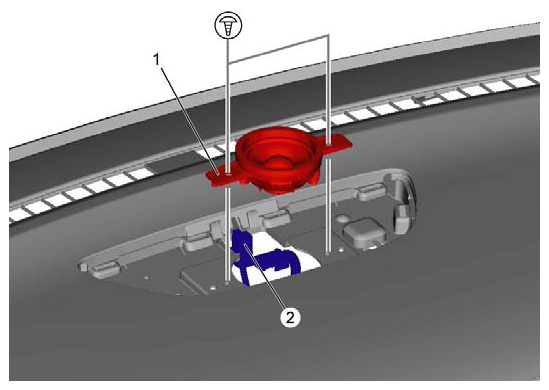

    Fig 1: Identifying Center Speaker And Speaker Connector With Screws
    G06530316Courtesy of SUZUKI OF AMERICA CORP.
