Audio Unit Removal and Installation: Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove HVAC control module, see HVAC CONTROL MODULE REMOVAL AND INSTALLATION .
  3. Remove audio unit (1) from instrument panel by removing 2 mounting screws (2).
  4. Disconnect audio unit connectors (3).

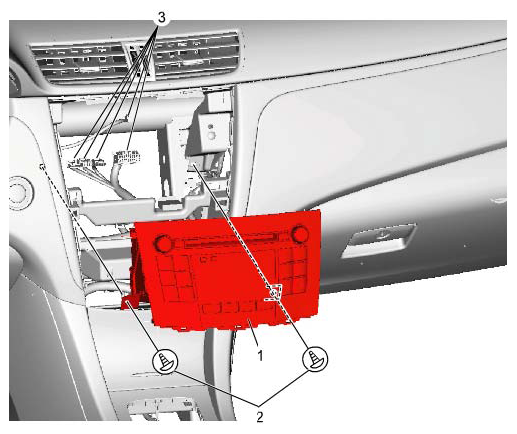

    Fig 1: Identifying Audio Unit And Audio Unit Connectors With Mounting Screws
    G06530313Courtesy of SUZUKI OF AMERICA CORP.
