Audio Amplifier Removal and Installation (If Equipped): Removal

WARNING: This page is about a different car, the 2010 Suzuki Kizashi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative (-) cable at battery.
  2. Remove trunk side trim, see TRIM REMOVAL AND INSTALLATION .
  3. Disconnect audio amplifier connectors (1).
  4. Remove 3 audio amplifier bolts (2).
  5. Remove audio amplifier (3) from trunk.

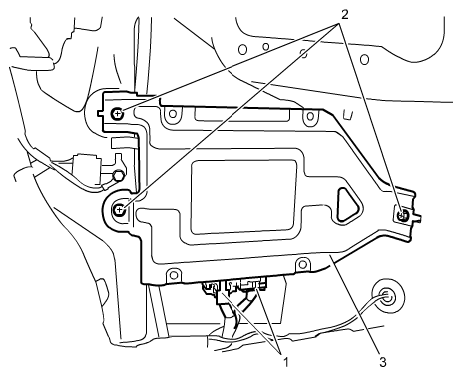

    Fig 1: Identifying Audio Amplifier With Connector And Bolts
    G06530330Courtesy of SUZUKI OF AMERICA CORP.
