Pull-in coil open circuit test

Check for continuity between magnetic switch "S" terminal (1) and "M" terminal (2). If there is no continuity, replace magnetic clutch

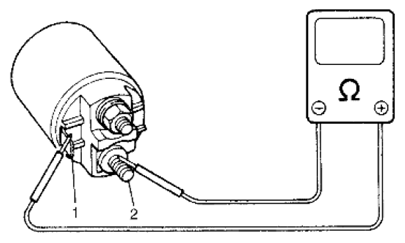

Fig 1: Checking Continuity Between Magnetic Switch S Terminal And M Terminal

Courtesy of SUZUKI OF AMERICA CORP.
