Parking Sensor System Component Location (If Equipped)

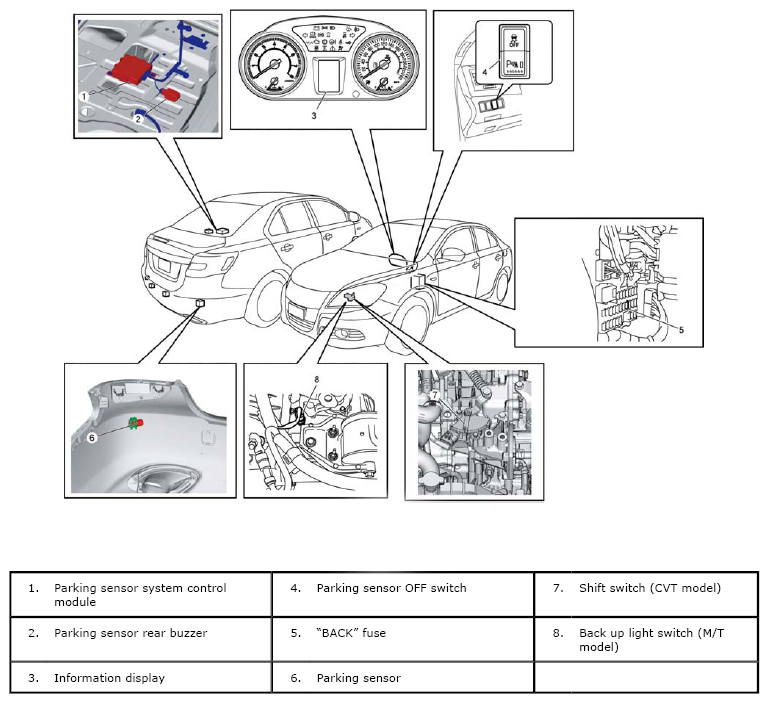

Fig 1: Identifying Parking Sensor System Component Location
G06529036Courtesy of SUZUKI OF AMERICA CORP.
