No-Load Check

NOTE: Use fully charged battery.

Check for DTC, see DTC CHECK .
If there is any DTC, perform trouble shooting for applicable DTC and then clear DTC.
- Trouble shooting: DTC TABLE
- DTC clearance: DTC CLEARANCE
Turn off all electrical loads (5).
Connect voltmeter (3) and ammeter (2) as shown in figure.
Start engine and warm it up to normal operating temperature.

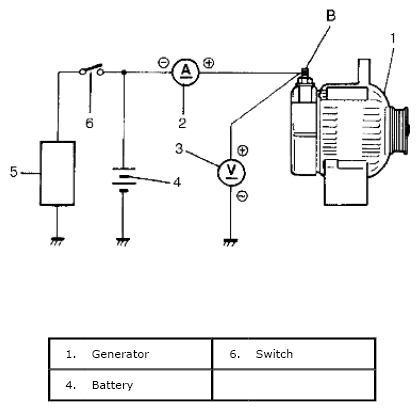

Fig 1: Generator Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Run engine around 2, 000 rpm and read meters.
- If voltage is higher than standard value, check ground circuit of brushes, see GENERATOR INSPECTION .
  If brushes are not grounded, replace IC regulator.
- If voltage is lower than standard value, inspect rotor, stator, rectifier, bushings and regulator, see GENERATOR INSPECTION .
  Specification for generator test (No-load check)

  Current: 10 A

  Regulated voltage (High): 14.2 - 14.8 V (at 25°C, 77°F)

  Regulated voltage (Low): 12.5 - 13.1 V (at 25°C, 77°F)

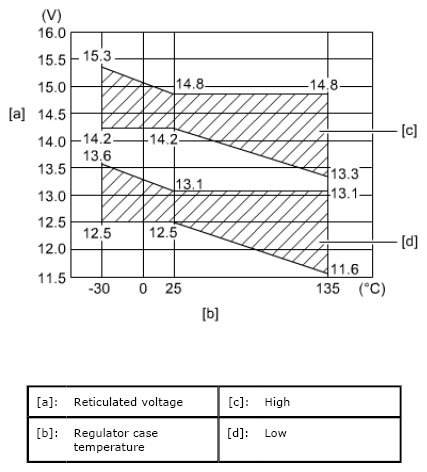

  Fig 2: Regulator Voltage Graph
  Courtesy of SUZUKI OF AMERICA CORP.
