Junction Block Inner Circuit (Detail): Abbreviations

ABBREVIATIONS CHART

Abbreviation	Full term	Abbreviation	Full term
AS	Assistant (Front passenger)	LP	Light
CTR	Center	O/H	Over head
DR	Driver	R/B	Relay box
F-L	Front L	R-L	Rear L
F-R	Front R	R-R	Rear R
FR	Front	RR	Rear
INP	Instrument panel	S/H	Seat heater
LEV	(Headlight) leveling

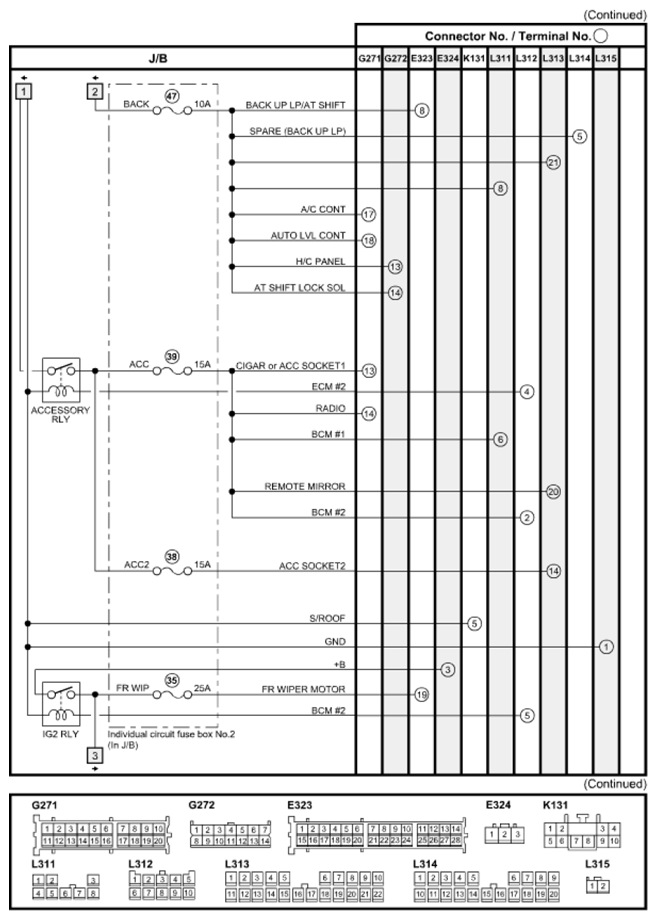

Fig 1: Junction Block Inner Circuit Diagram (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

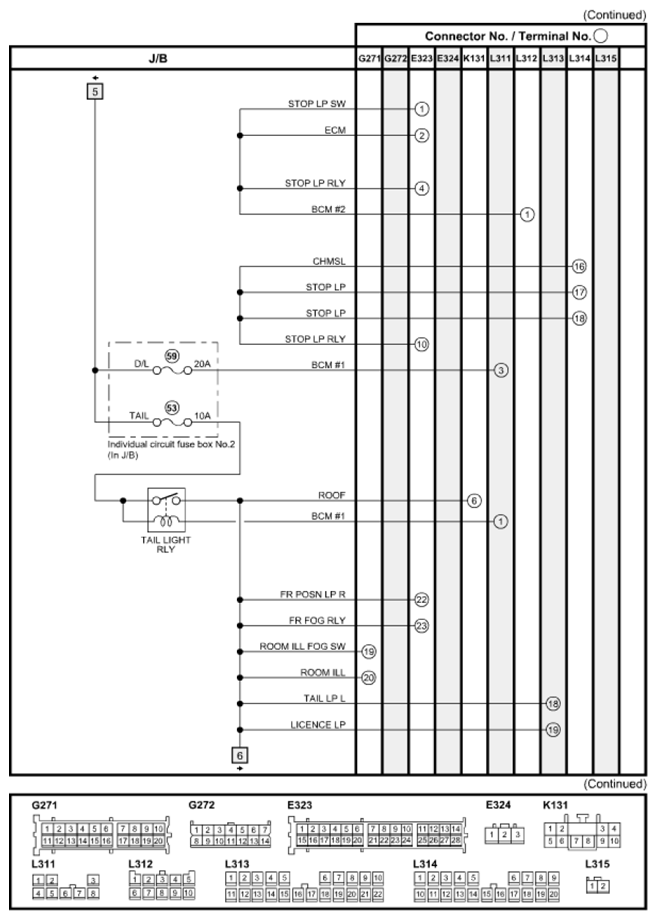

Fig 2: Junction Block Inner Circuit Diagram (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

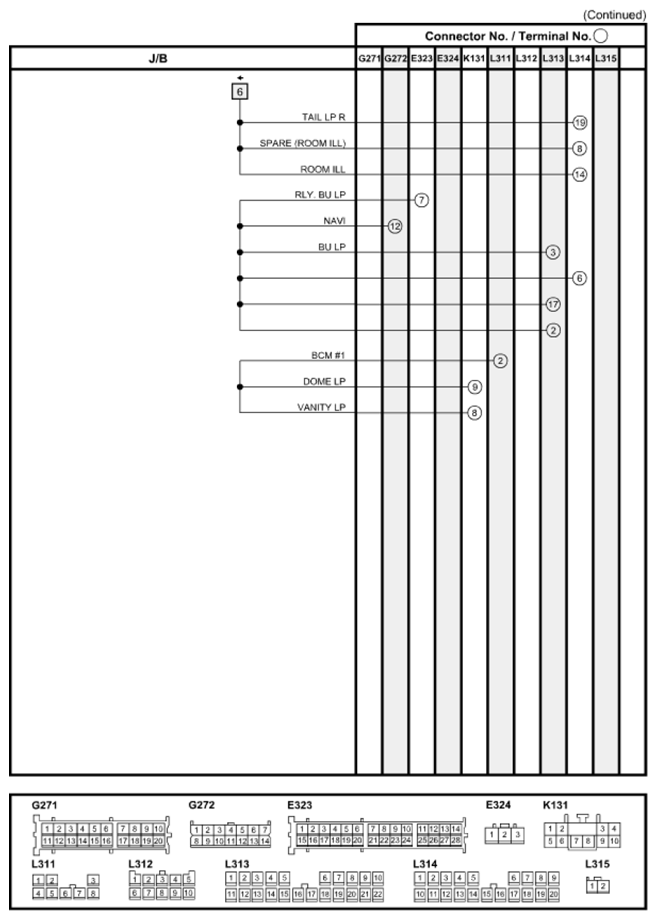

Fig 3: Junction Block Inner Circuit Diagram (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

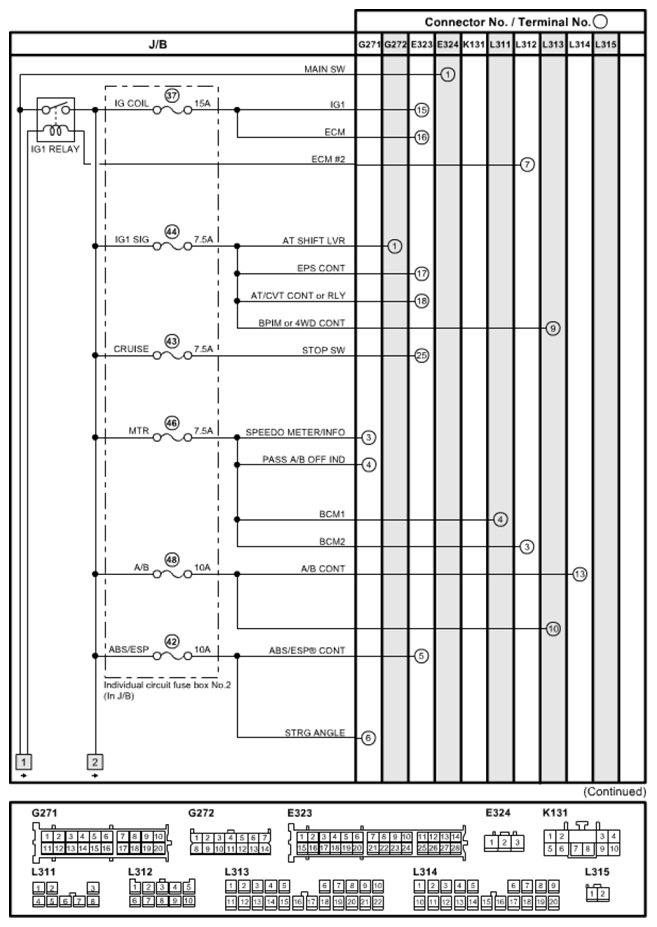

Fig 4: Junction Block Inner Circuit Diagram (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

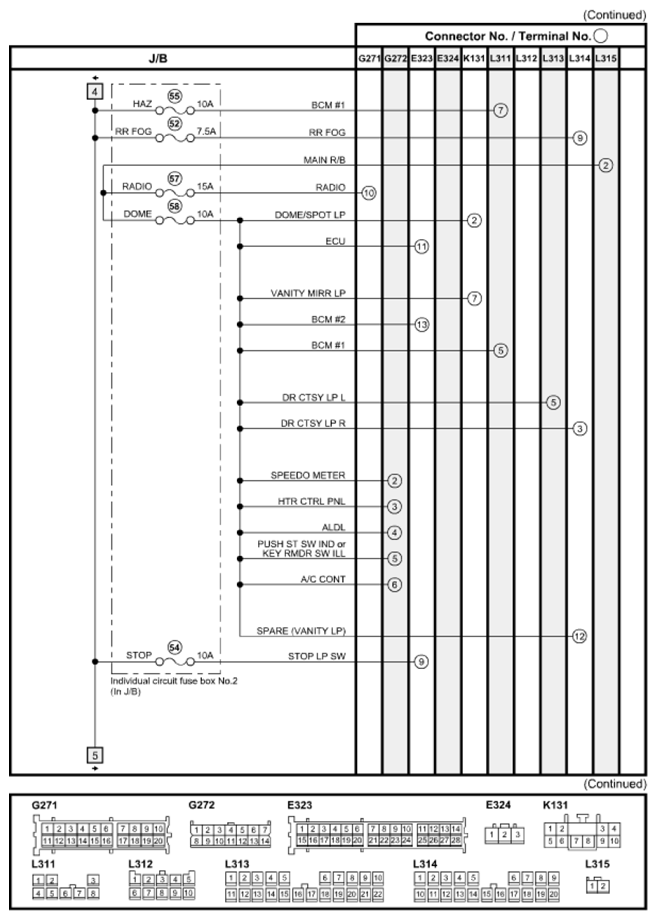

Fig 5: Junction Block Inner Circuit Diagram (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

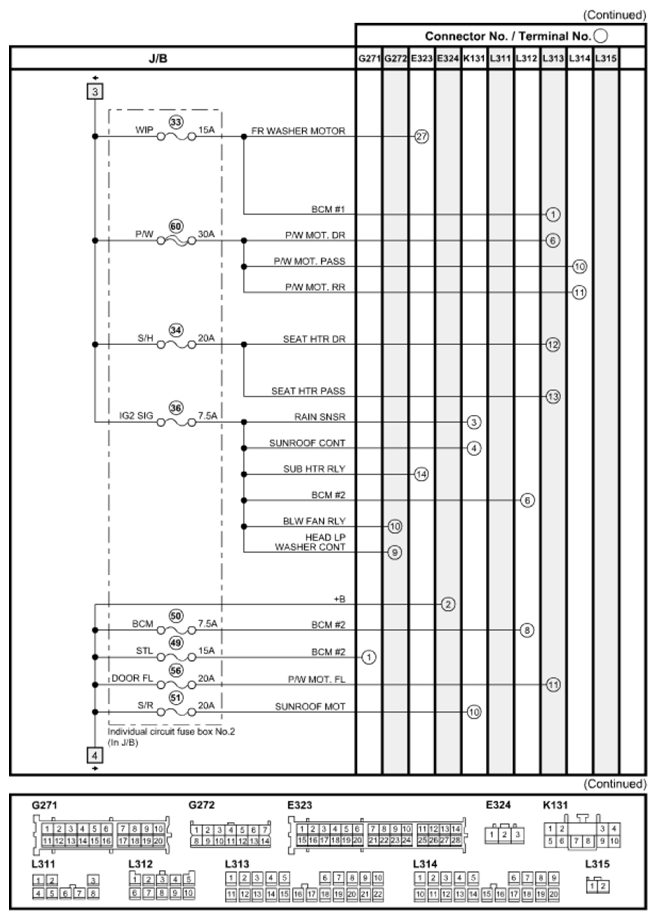

Fig 6: Junction Block Inner Circuit Diagram (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
