ESP® Warning Light Does Not Come ON after Pressing Engine Switch to Change the Ignition Mode of Keyless Push Start System to "ON"
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

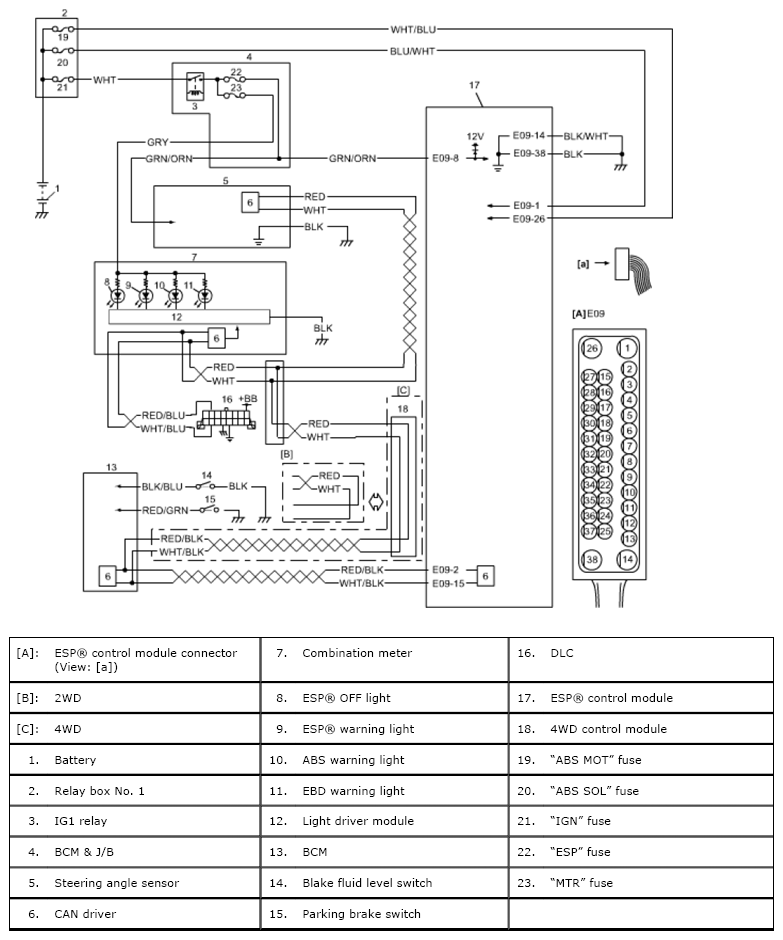

Fig 1: ESP Warning Light Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
