EBD Warning Light (Brake Warning Light) Comes ON Steady
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

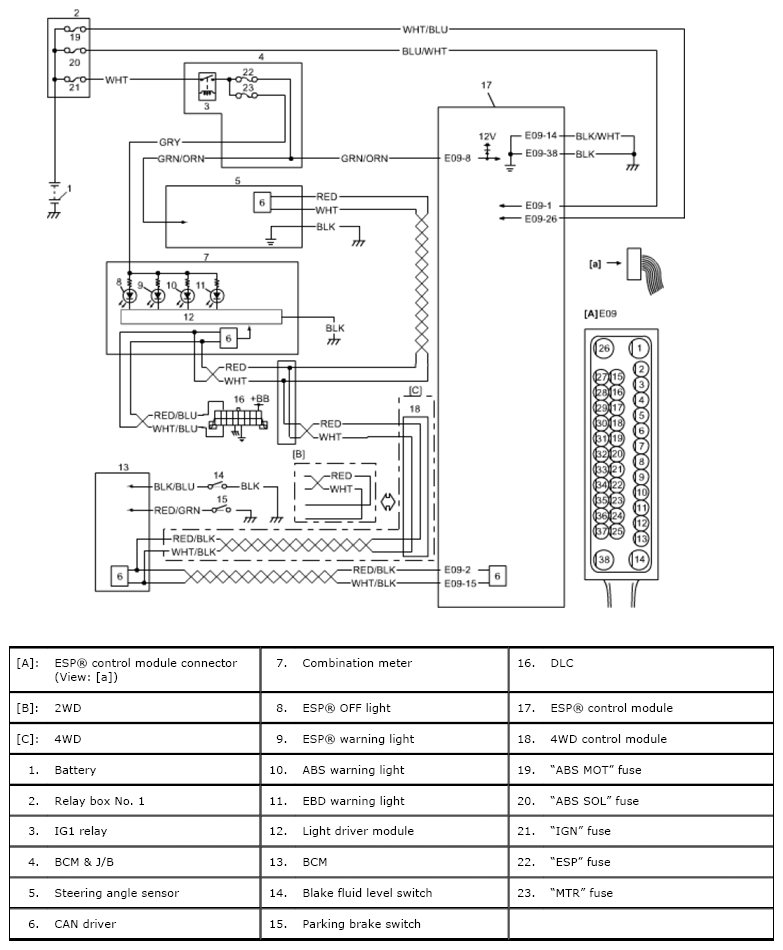

Fig 1: EBD Warning Light Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
