Sun Roof Switch Inspection

Reference: SUN ROOF SWITCH REMOVAL AND INSTALLATION

Check continuity between terminals of sun roof switch connector at each switch position. If check result is not as specified, replace switch.

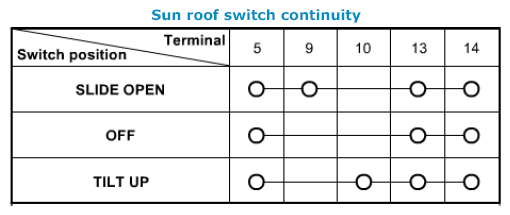

Fig 1: Sun Roof Switch Continuity Chart

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Sun Roof Switch Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.
