Sun Roof Assembly Removal and Installation: Removal

1. Remove roof lining, see ROOF LINING REMOVAL AND INSTALLATION .
2. Remove sun roof glass, see SUN ROOF GLASS REMOVAL AND INSTALLATION .
3. Disconnect drain hoses (1) connected to sun roof assembly at 4 locations.

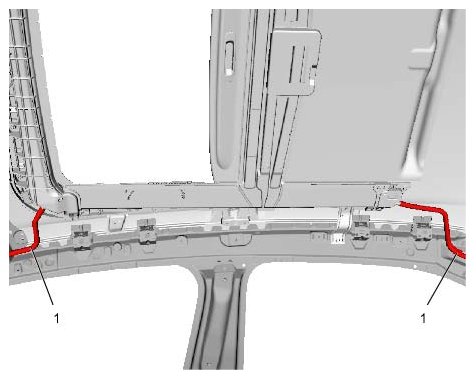

   Fig 1: Identifying Drain Hose Location

   Courtesy of SUZUKI OF AMERICA CORP.
4. Disconnect sun roof motor connector (1).
   Fig 2: Identifying Sun Roof Motor Connector

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove 1 nut (1), and then remove console box mounting bracket (2) while releasing the locks (3).
6. Remove 7 nuts (4) and 2 bolts (5), and then remove sun roof assembly (6).

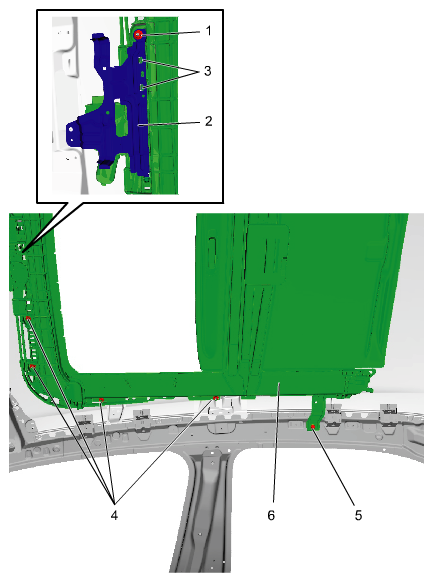

Fig 3: Identifying Console Box Mounting Bracket

Courtesy of SUZUKI OF AMERICA CORP.
