Sun Roof Assembly Removal and Installation: Installation

Reverse removal procedure noting the following points.

• Connect drain hoses (1) to sun roof assembly at 4 locations. Clamp drain hoses by clamps (2) securely.

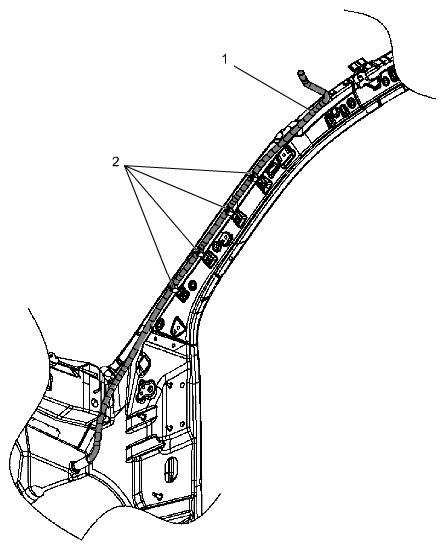

  Fig 1: Identifying Drain Hose And Clamp Location (1 Of 4)

  Courtesy of SUZUKI OF AMERICA CORP.

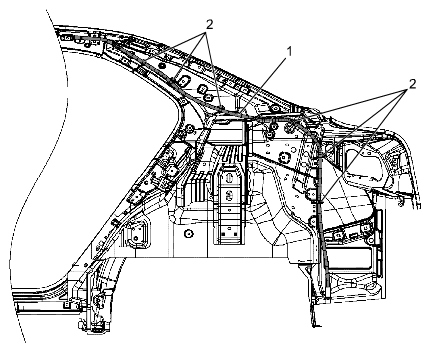

  Fig 2: Identifying Drain Hose And Clamp Location (2 Of 4)

  Courtesy of SUZUKI OF AMERICA CORP.

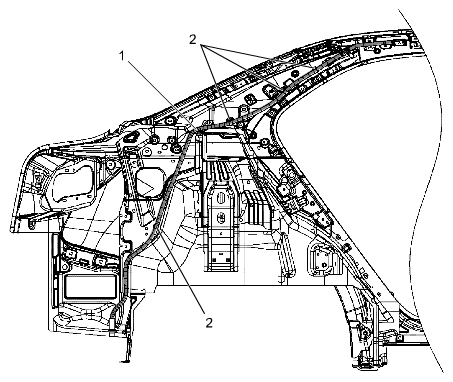

  Fig 3: Identifying Drain Hose And Clamp Location (3 Of 4)

  Courtesy of SUZUKI OF AMERICA CORP.

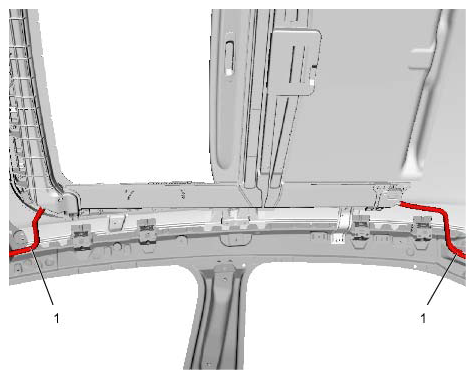

  Fig 4: Identifying Drain Hose And Clamp Location (4 Of 4)

  Courtesy of SUZUKI OF AMERICA CORP.
• Initialize sun roof motor, see SUN ROOF MOTOR INITIALIZATION .
• After reinstalling sun roof assembly, be sure to perform SUN ROOF GLASS ADJUSTMENT .
