Power Seat Main Switch (Driver Side)

Disconnect power seat main switch connector from front seat control module (driver seat).
Check continuity between terminals at each switch position.
If check result is not as specified, replace switch.

NOTE: Set tester to diode test range when measuring continuity between terminals "2" and "9".

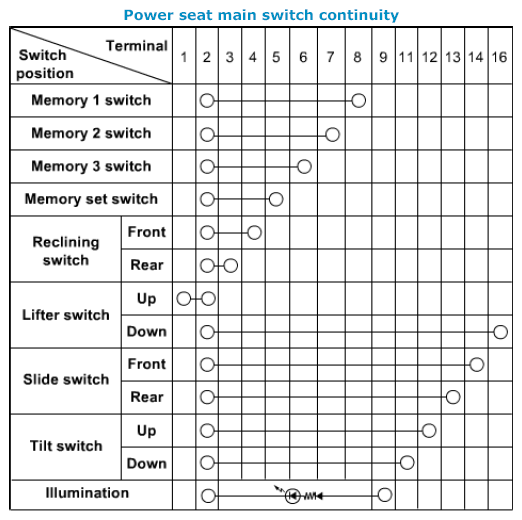

Fig 1: Power Seat Main Switch Continuity Chart
Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Power Seat Main Switch Connector Location
Courtesy of SUZUKI OF AMERICA CORP.
