Power Door Mirror Switch Inspection

  1. Remove power door mirror switch, see FRONT DOOR COMPONENTS .
  2. Check continuity between terminals at each switch position.

    If check result is not as specified, replace switch.

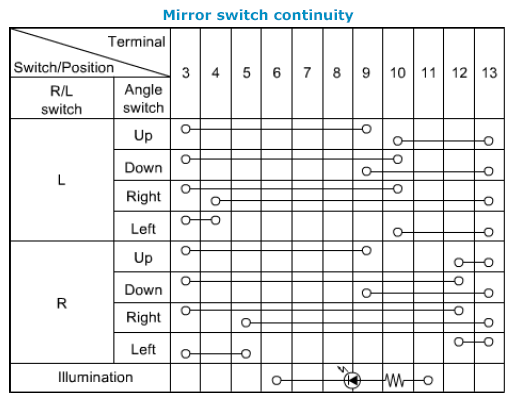

    Fig 1: Mirror Switch Continuity Chart
    G06529172Courtesy of SUZUKI OF AMERICA CORP.

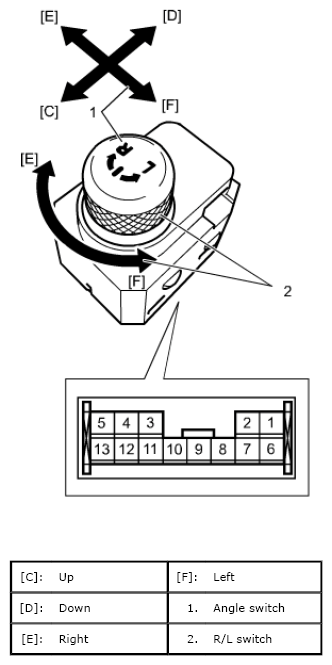

Fig 2: Identifying Power Door Mirror Switch Connector Terminals
G06529173Courtesy of SUZUKI OF AMERICA CORP.
