Gear Shift Control Lever Assembly Components
WARNING:
This page is about a different variant/trim than selected.

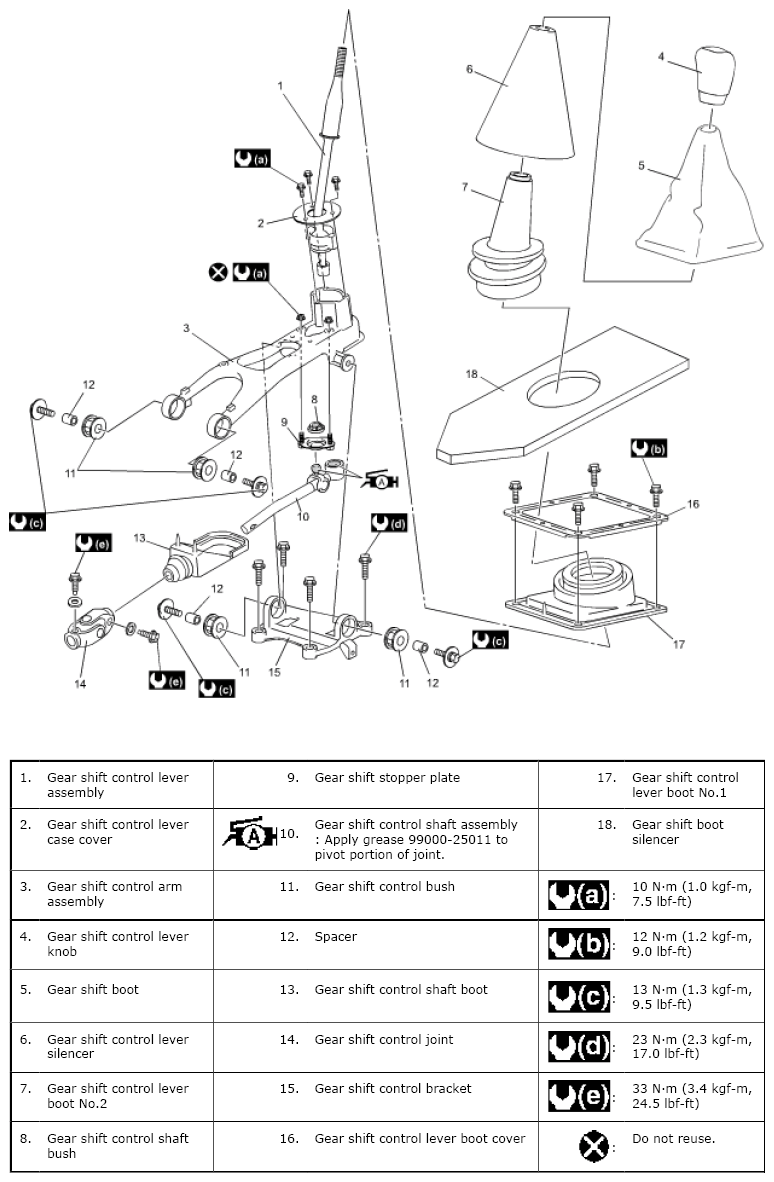

Fig 1: Exploded View Of Gear Shift Control Lever Assembly
Courtesy of SUZUKI OF AMERICA CORP.
