Transmission Shift Control Lever Removal and Installation: Removal

Remove gear shift control lever knob.
Remove gear shift boot and gear shift control lever silencer.
Remove front console box referring to CONSOLE BOX COMPONENTS .
Remove gear shift boot silencer.
Lift up boot cover (1), boot No. 2 (2) and boot No. 1 (3).
Remove case cover (4) and take out shift control lever (5) from gear shift control arm assembly (6).

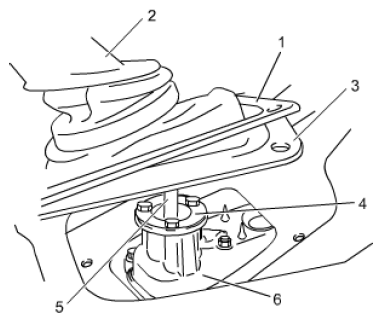

Fig 1: Identifying Gear Shift Control Arm Assembly, Shift Control Lever, Case Cover, Boot Cover And Boots
Courtesy of SUZUKI OF AMERICA CORP.
