Gear Shift Lever Front Case Assembly Disassembly and Reassembly: Disassembly

  1. Remove gear shift case plug.
  2. Drive out gear shift arm pin using special tool, and then disassemble components parts.
    NOTE: Be careful to disconnect gear shift shaft from gear shift lever front case because gear shift locating ball and gear shift locating spring may bounce out.

    Special Tool

    (A): 09925-78210

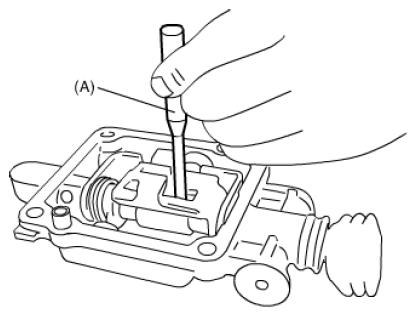

    Fig 1: Removing Gear Shift Arm Pin Using Special Tool
    G08899128Courtesy of SUZUKI OF AMERICA CORP.
